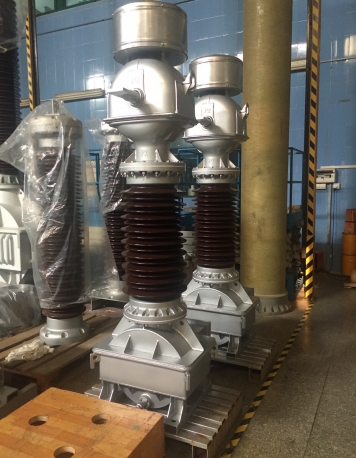

CT-PT COMBINED TRANSFORMER MODEL JLD-72,5KV
Stok | Pre Order |
Kategori | Uncategorized |
CT-PT COMBINED TRANSFORMER MODEL JLD-72,5KV
CT-PT COMBINED TRANSFORMER MODEL JLD-72,5KV
Rated voltage: 72.5kV
Rated Voltage Ratio: 70000/√3:110√3:110√3 V
Accuracy class:1.0/1.0
Rated output: 30/30VA
Frequency: 50Hz
No of core: 2
Insulating material: Oil
Service condition: Outdoor
Insulation level: 72.5/140/350kV
Limited output:1500VA 1/1
Altitude: ≤1000m
Ambient temperature: -40~+40℃
Relative humidity: 70%
Over voltage capability:1.2Un continue
1.9Un/8h.
For CT
Accuracy class/Rated output:1.0/5P20, 15/15VA
Ith=10KA/1s
Idyn=25KA
Rated current ratio: 100/5A
CT-PT COMBINED TRANSFORMER MODEL JLD-72,5KV
